Andreas Fichtner strips a cable of its protective sheath, exposing a glass core thinner than a hair—a fragile, four-kilometer-long fiber that’s about to be fused to another. It’s a fiddly task better suited to a lab, but Fichtner and his colleague Sara Klaasen are doing it atop a windy, frigid ice sheet.
After a day’s labor, they have spliced together three segments, creating a 12.5-kilometer-long cable. It will stay buried in the snow and snoop on the activity of Grímsvötn, a dangerous, glacier-covered Icelandic volcano.
Sitting in a hut on the ice later on, Fichtner’s team watches as seismic murmurs from the volcano beneath them flash across a computer screen: earthquakes too small to be felt but readily picked up by the optical fiber. “We could see them right underneath our feet,” he says. “You’re sitting there and feeling the heartbeat of the volcano.”
Fichtner, a geophysicist at the Swiss Federal Institute of Technology, in Zurich, is one of a cadre of researchers using fiber optics to take the pulse of our planet. Much of this work is being done in remote places, from the tops of volcanoes to the bottoms of seas, where traditional monitoring is too costly or difficult. There, in the past five years, fiber optics have started to shed light on seismic rumblings, ocean currents, and even animal behaviors.
Grímsvötn’s ice sheet, for example, sits on a lake of water thawed by the volcano’s heat. Data from the new cable reveal that the floating ice field serves as a natural loudspeaker, amplifying tremors from below. The work suggests a new way to eavesdrop on the activity of volcanoes that are sheathed by ice—and so catch tremors that may herald eruptions.
The technique used by Fichtner’s team is called distributed acoustic sensing, or DAS. “It’s almost like radar in the fiber,” says the physicist Giuseppe Marra of the United Kingdom’s National Physical Laboratory, in Teddington, England. While radar uses reflected radio waves to locate objects, DAS uses reflected light to detect events as varied as seismic activity and moving traffic, and to determine where they occurred.
It works like this: A laser source at one end of the fiber shoots out short pulses of light. As a pulse moves along the fiber, most of its light continues forward. But a fraction of the light’s photons bang into intrinsic flaws in the fiber—spots of abnormal density. These photons scatter, some of them traveling all the way back to the source, where a detector analyzes this reflected light for hints about what occurred along the fiber’s length.
An optical fiber for DAS typically stretches several to dozens of kilometers, and it moves or bends in response to disturbances in the environment. “It wiggles as cars go by, as earthquakes happen, as tectonic plates move,” says the earth scientist Nate Lindsey, a co-author of a 2021 article on the use of fiber optics for seismology in the Annual Review of Earth and Planetary Sciences. Those wiggles change the reflected-light signal and allow researchers to tease out information such as how an earthquake bent a cable at a certain point.
An optical cable captures vibrations, for instance, of seismic tremors along its whole length. In contrast, a typical seismic sensor, or seismometer, relays information from only one spot. And seismometers can be costly to deploy and difficult to maintain, says Lindsey, who works at FiberSense, a company that is using fiber-optic networks for applications in city settings.
DAS can provide about one-meter resolution, turning a 10-kilometer fiber into something like 10,000 sensors, Lindsey says. Researchers can sometimes piggyback off existing or decommissioned telecommunications cables. In 2018, for example, a group including Lindsey, who was then at UC Berkeley and Lawrence Berkeley National Laboratory, turned a 20-kilometer cable operated by the Monterey Bay Aquarium Research Institute—normally used to film coral, worms, and whales—into a DAS sensor while the system was offline for maintenance.
“The ability to just go under the seafloor for tens of kilometers—it is remarkable that you can do that,” Lindsey says. “Historically, deploying one sensor on the seafloor can cost $10 million.”
During their four-day measurement, the team caught a 3.4-magnitude earthquake shaking the ground some 30 kilometers away in Gilroy, California. For Lindsey’s team, it was a lucky strike. Earth scientists can use seismic signals from earthquakes to get a sense of the structure of the ground that the quake has traveled through, and the signals from the fiber-optic cable allowed the team to identify several submarine faults. “We’re using that energy to basically illuminate this structure of the San Andreas Fault,” Lindsey says.
DAS was pioneered by the oil-and-gas industry to monitor wells and detect gas in boreholes, but researchers have been finding a variety of other uses for the technique. In addition to earthquakes, it has been harnessed to monitor traffic and construction noise in cities. In densely populated metropolises with significant seismic hazards, such as Istanbul, DAS could help map the sediments and rocks in the subsurface to reveal which areas would be the most dangerous during a large quake, Fichtner says. A recent study even reported eavesdropping on whale songs using a seabed optical cable near Norway.
But DAS comes with some limitations. Getting good data from fibers longer than 100 kilometers is tricky. The same flaws in the cables that make light scatter—producing the reflected light that is measured—can deplete the signal from the source. Over enough distance, the original pulse would be completely lost.
But a newer, related method may provide an answer—and perhaps allow researchers to spy on a mostly unmonitored seafloor, using existing cables that shuttle the data of billions of emails and streaming binges.
In 2016, Marra’s team sought a way to compare the timekeeping of ultraprecise atomic clocks at distant spots around Europe. Satellite communications are too slow for this job, so the researchers turned to buried optical cables instead. At first, it didn’t work: Environmental disturbances introduced too much noise into the messages that the team sent along the cables. But the scientists sensed an opportunity. “That noise that we want to get rid of actually contains very interesting information,” Marra says.
Using state-of-the-art methods for measuring the frequency of light waves bouncing along the fiber-optic cable, Marra and colleagues examined the noise and found that—like DAS—their technique detected events such as earthquakes through changes in the light frequencies.
Instead of pulses, though, they use a continuous beam of laser light. And unlike in DAS, the laser light travels out and back on a loop; then the researchers compare the light that comes back with what they sent out. When there are no disturbances in the cable, those two signals are the same. But if heat or vibrations in the environment disturb the cable, the frequency of the light shifts.
With its research-grade light source and measurement of a large amount of the light initially emitted—as opposed to just what’s reflected—this approach works over longer distances than DAS does. In 2018, Marra’s team demonstrated that they could detect quakes with undersea and underground fiber-optic cables up to 535 kilometers long, far exceeding DAS’s limit of about 100 kilometers.
This offers a way to monitor the deep-ocean and Earth systems that are usually hard to reach and rarely tracked using traditional sensors. A cable running close to the epicenter of an offshore earthquake could improve on land-based seismic measurements, providing perhaps minutes more time for people to prepare for a tsunami and make decisions, Marra says. And the ability to sense changes in seafloor pressure may open the door to directly detecting tsunamis too.
In late 2021, Marra’s team managed to sense seismicity across the Atlantic on a 5,860-kilometer optical cable running on the seafloor between Halifax in Canada and Southport in England. And they did so with far greater resolution than before, because whereas earlier measurements relied on accumulated signals from across the entire submarine cable’s length, this work parsed changes in light from several-dozen-kilometer spans between signal-amplifying repeaters.
Fluctuations in the intensity of the signal picked up on the transatlantic cable appear to be tidal currents. “These are essentially the cable being strummed as a guitar string as the currents go up and down,” Marra says. While it’s easy to watch currents at the surface, seafloor observations can improve an understanding of ocean circulation and its role in global climate, he adds.
So far, Marra’s team is alone in using this method. They’re working on making it easier to deploy and on providing more accessible light sources.

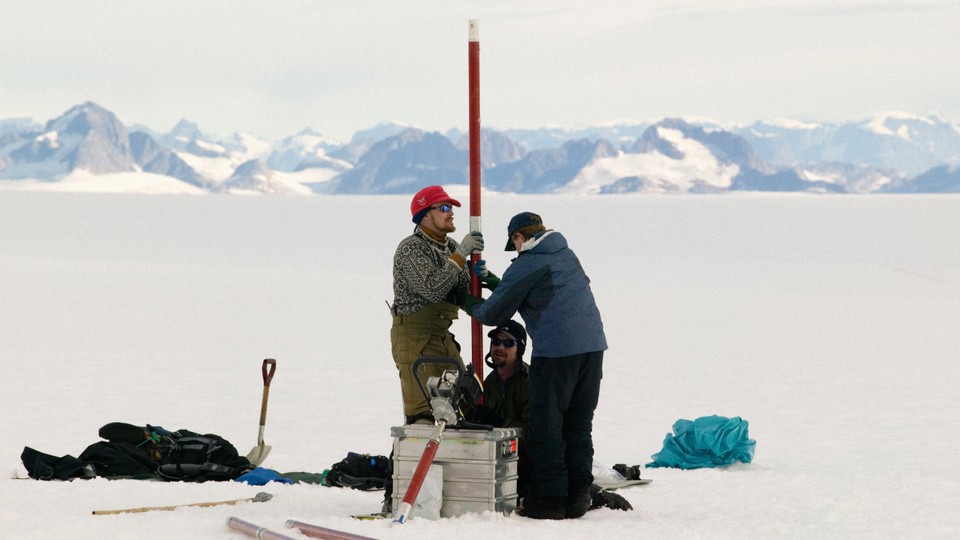

Researchers are continuing to push sensing techniques based on optical fibers to new frontiers. Earlier this year, Fichtner and a colleague journeyed to Greenland, where the East Greenland Ice-Core Project is drilling a deep borehole into the ice sheet to remove an ice core. Fichtner’s team then lowered a fiber-optic cable 1,500 meters, by hand, and caught a cascade of icequakes—rumbles that result from the bedrock and ice sheet rubbing together.
Icequakes can deform ice sheets and contribute to their flow toward the sea. But researchers haven’t had a way before now to investigate how they happen; they are invisible at the surface. Perhaps fiber optics will finally bring their hidden processes into the light.
