In charts: Financial crisis

Liquidity

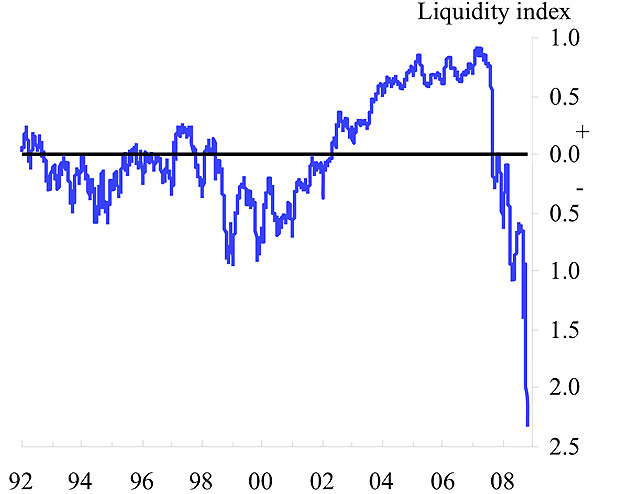

The credit crunch has been driven by the dramatic loss of liquidity in financial markets, sparked by the US sub-prime crisis. Gieve said the instability over the last year has been 'the most severe in living memory'
Photograph: Bank of England

Household consumption

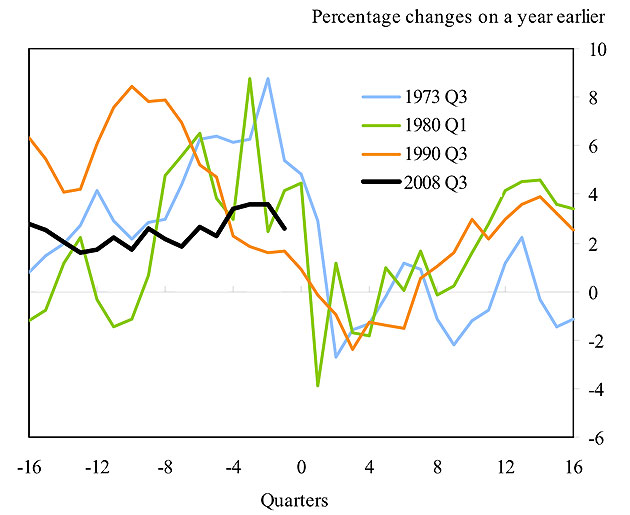

While the current crisis has some similarities to previous downswings there are some significant differences. The last three recessions in the UK in the 70s, 80s and early 90s were preceded by sharp rises in consumption. As this chart shows that was not true of the last few years when consumption was stable
Photograph: Bank of England

Bank lending to households exploded

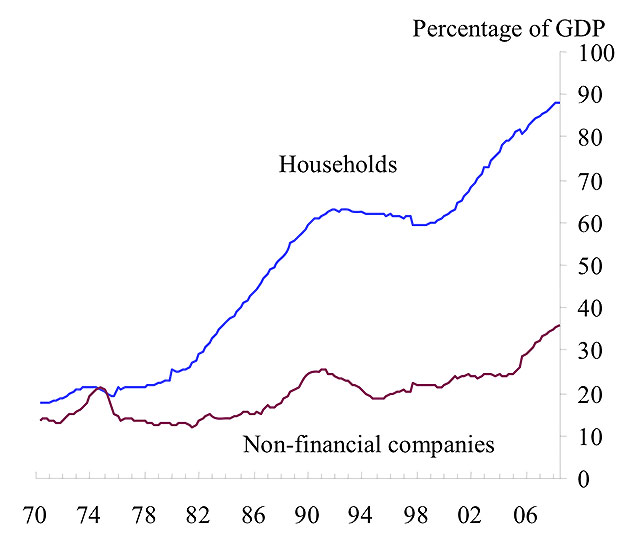

Cheap credit fuelled a spectacular expansion of bank balance sheets
Photograph: Bank of England

The bank funding gap

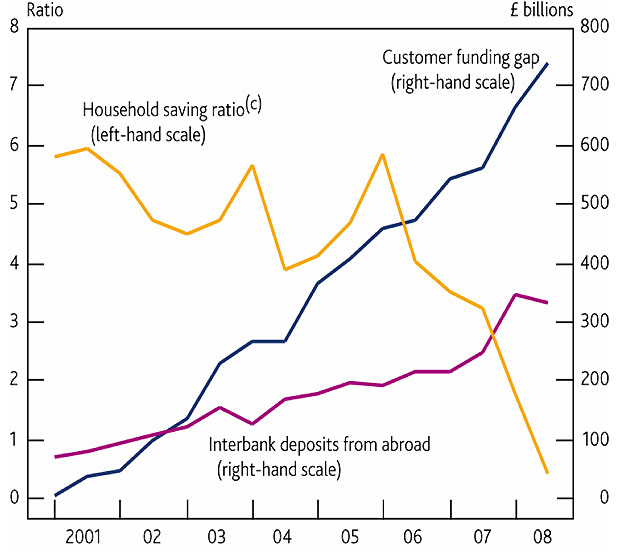

As British consumers saved less (yellow line), the gap between how much banks lent and their deposits grew sharply (blue line). To fill the gap, UK banks borrowed more from overseas (purple line)
Photograph: Bank of England

Cost of credit

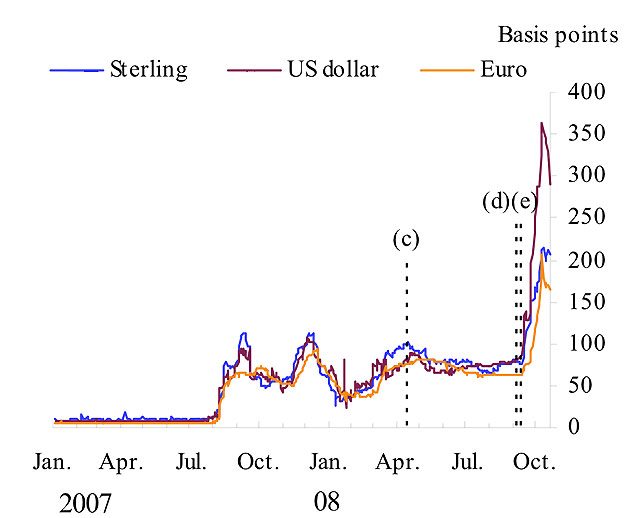

As the crisis took hold, central banks flooded money markets with extra liquidity but conditions got worse over the summer as worries grew about the downturn in the broader economy and its consequences for bank losses. Credit default swap premiums rose to unprecedented levels
Photograph: Bank of England

Three-month interbank rates relative to base rates

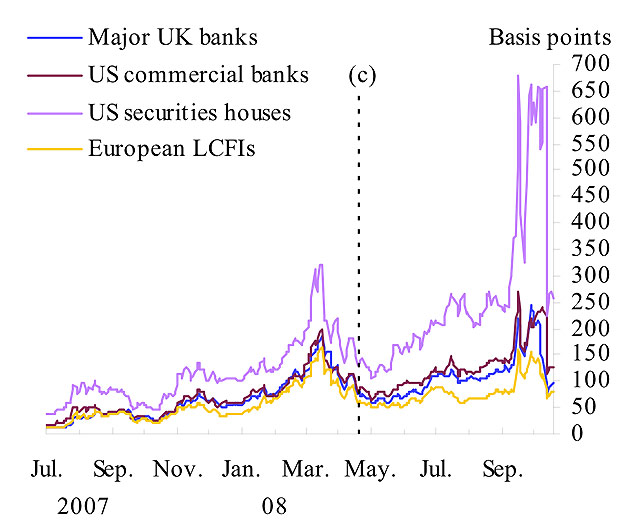

Interbank lending rates rose sharply and stayed well above central banks' base rates in Britain, the eurozone and the US, making credit increasingly expensive for firms and consumers
Photograph: Bank of England

The gap between three-month UK libor and the base rate

In unprecedented coordinated action on October 8, the Fed, Bank of England and ECB announced a package to cut base rates, inject new capital and boost liquidity. Libor spreads have edged down and are now expected to fall a bit further and faster than before the package, Gieve said. This should make credit cheaper
Photograph: Bank of England

Gieve wants banks to save when times are good

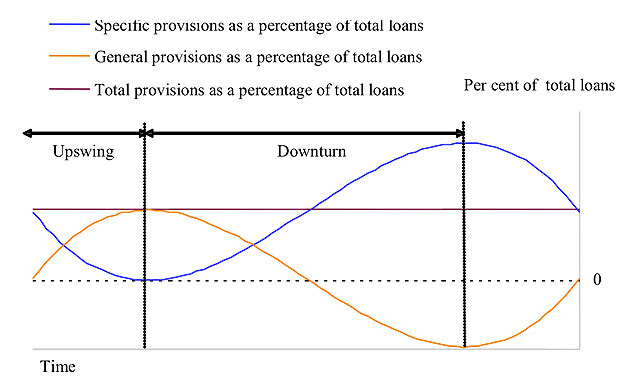

Banks will now come under pressure to build up their reserves during good times, in order to protect themselves against losses in a downturn. This kind of 'dynamic provisioning' has been used by banks in Spain, leaving institutions such as Santander relatively well-placed

Photograph: Bank of England
