Did you solve it? Are you smarter than an Uzbek in 3D?

Did you correctly visualise the woodblock puzzle?

Earlier today I set you the following problem (Click here for the full question, spelt out in more detail):

The woodblock puzzle

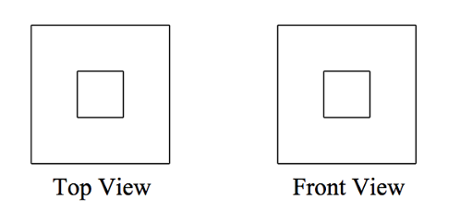

Below are the top and front views of a three-dimensional wooden structure.

Please draw at least one left side view of the structure.

1. in which only wood with flat surfaces is allowed.

2. in which wood with curved surfaces is also allowed.

Solution:

Here are two solutions for part 1, when only flat surfaces are allowed:

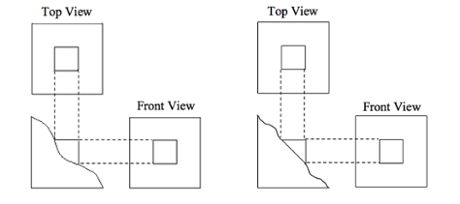

On the left, a prism sticks out. On the right, there is an indentation the shape of a prism.

I had thought these were the only two solutions - until I received the solution this morning from a reader called Anoop. I wonder if there are any more?

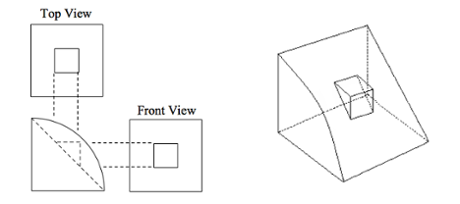

Anoop sent in the solution in blue (above left), which has the side view illustrated above right.

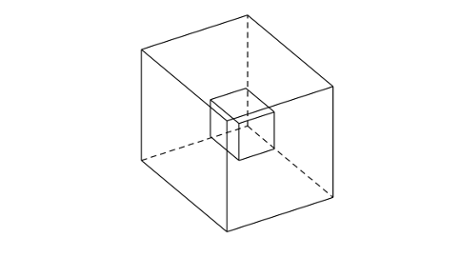

There are many other possible solutions that fail because the structure must be made of wood, and so every surface must be nonzero. Here is an excellent, and very creative incorrect solution: a transparent glass cube with a smaller opaque cube in the middle.

Nice try, but wrong.

For part 2, when curved surfaces are allowed, there are many solutions. Here are some of them. Did you get many, or indeed any?

In these solutions the protruding (indented) part is not a section of a sphere but of a horizontal cylinder.

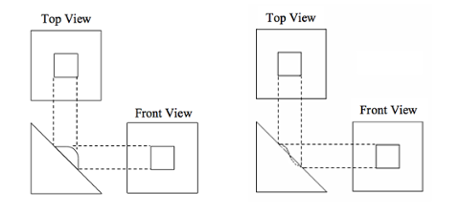

The curved wooden surfaces need to curve in certain ways, otherwise they may themselves produce extra lines. Here are some other solutions that work:

Variations on the above theme with different curves.

More varations.

The circle in the top right solution does not denote a sphere but a cylinder. It is assumed that it can be stuck on in this way!

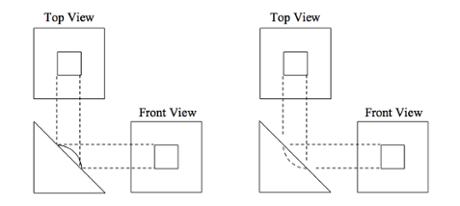

The following two solutions are more challenging to visualise:

Starting from the edge that is the hypotenuse of the right-triangular side, the surface starts flat before smoothly curving until it reaches the circular arc.

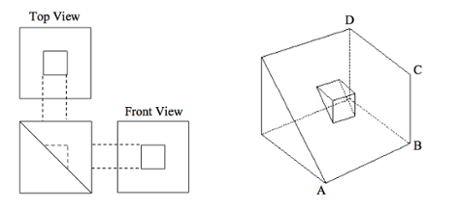

The solutions here are mostly by Alisher Ikramov of the National Universty of Uzbekistan. The next one is his most brain-stretching solution. The surface will move upwards from AB, curve inwards from BC and curve downwards from CD in such a way that there is no sharp line on the curved surface.

A real brain-stretcher of a solution.

When the question went up this morning, many people posted their solutions on social media. I particularly liked these pleasing, space-age designs by Phin Harper, deputy director or the Architecture Foundation. I think architects found this puzzle quite easy!

@alexbellos @ArchFoundation @brunotonelli another option with a sexy profile view. pic.twitter.com/LGIoXzSn5F

— Phin Harper (@PhinHarper) September 28, 2015

@ArchFoundation @brunotonelli @SULEJMANIJA and another! pic.twitter.com/O9CiEt2qnL

— Phin Harper (@PhinHarper) September 28, 2015

Now I know why!

@alexbellos @ArchFoundation I think we archts have an unfair advantage as solution to no.1 is a dormer window, e.g. pic.twitter.com/zxuVZhPTlG

— Stephen Hall (@spshall) September 28, 2015

If you have other solutions than the ones above, send them in.
